NANTAI CR966 Common Rail Common Rail High Pressure CR966 Common Rail Diesel Injector and Pump Test Bench
2022/4/25 13:40:06    本站    373

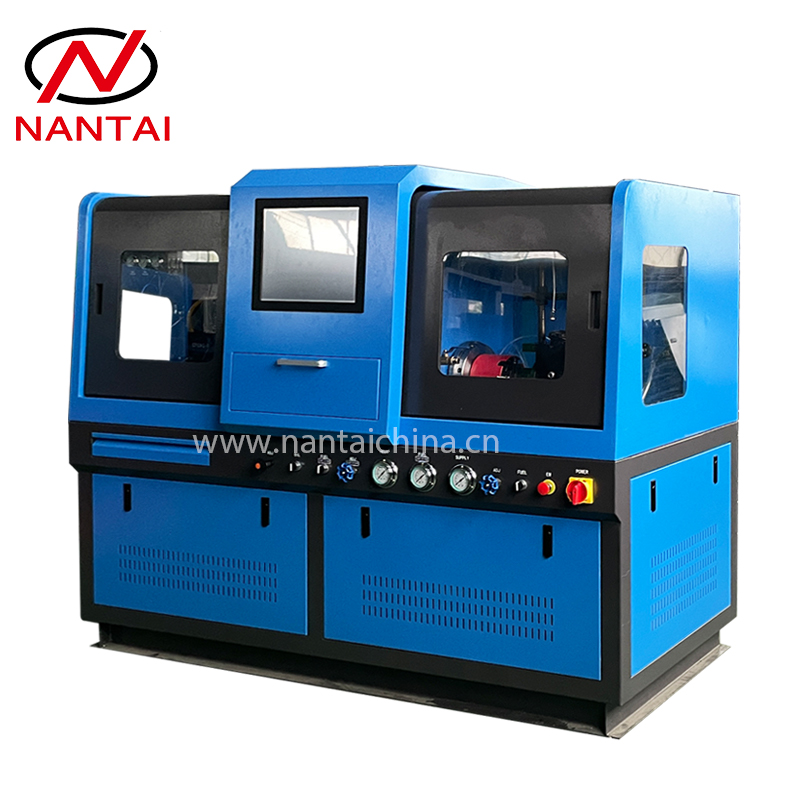

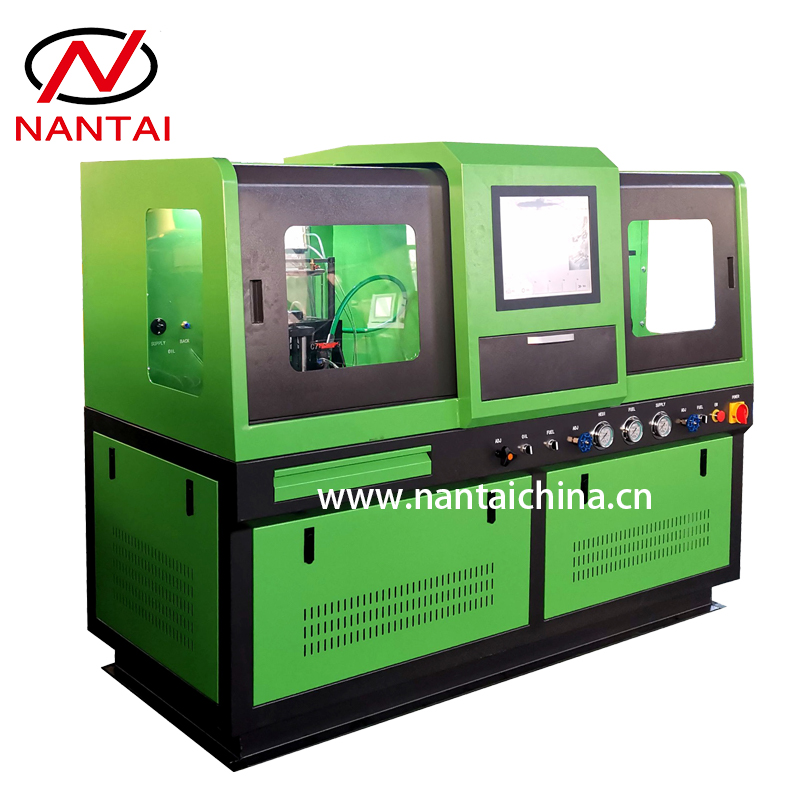

NANTAI CR966 Common Rail Common Rail High Pressure CR966 Common Rail Diesel Injector and Pump Test Bench


⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️

Click Here to watch the full function test video

⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️



NANTAI Automotive Technology Co.,Ltd
Whatsapp/Wechat/Viber : +86 15621386250

⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️⬇️

⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️⬆️


Common Rail Test Bench ➡️ Click on FaceBook see more:
  • Common rail test bench is the professional test bench which is used for testing common rail system, mainly test for common rail pump and injectors.
  • Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems.
  • The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.
  • It guarantees a high level of re-productivity of the measured valve.


Function:

1, Test common rail pump

2, Test HP0 pump

3, Test common rail injector: (BOSCH, DENSO, SIEMENS, DELPHI, CUMMINS, CAT, etc, including CUMMINS ISG/XPI injector,4 pin injector).

4, Test piezoelectric injector

5, Test the injector's inductance and resistance

6, QR coding(injector coding for Bosch, Denso, Siemens, Delphi, Cummins…)

7, EUI/EUP

8, HEUI (C7 C9 C-9 3126B injector)

9, BIP for common rail injector(Optional)

10, CAT 320D pump test (Optional)

11, CAT HEUI (C7 C9) PUMP test (Optional)

12, HEUI (3406, 3408, 3412, FORD 6.0 injector) (Optional)

13, Forced cooling system (Optional)

14.All data can be searched, printed

15.Can connect to WIFI and upgrade test data for free. Also be operated remotely by teamviewer.



Technical Parameters of CR966 injector tester common rail:

Output Power 7.5kw, 11kw, 15kw, 18.5kw
Electronic Power Voltage 380V, 3PH / 220V, 3PH
Motor Speed 0-4000RPM
Pressure Adjustment 0-2600BAR
Flow Testing Range 0-600ml/1000times
Flow Measurement Accuracy 0.1ml
Temperature Range 40±2
Cooling System Air or Forced Cooling
